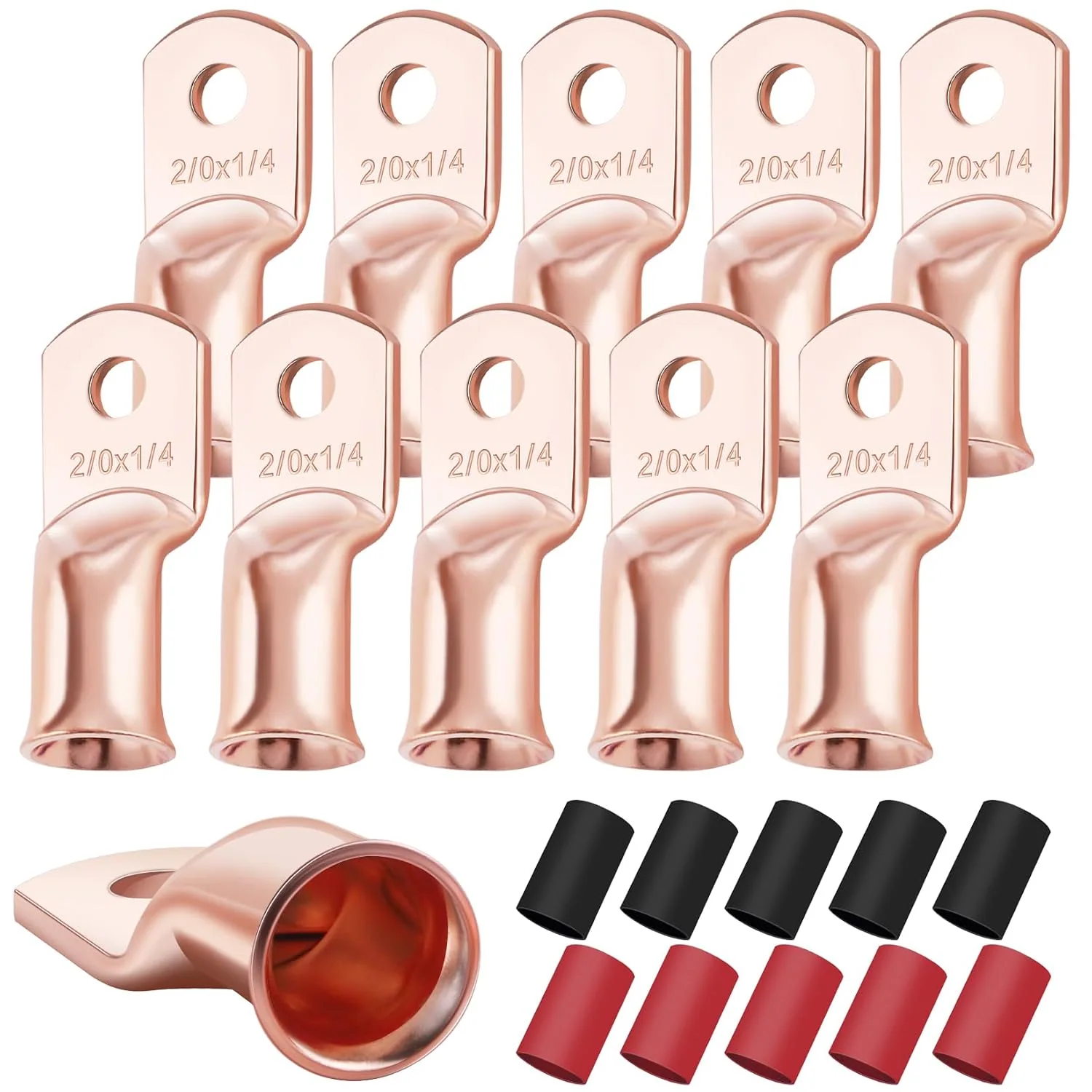

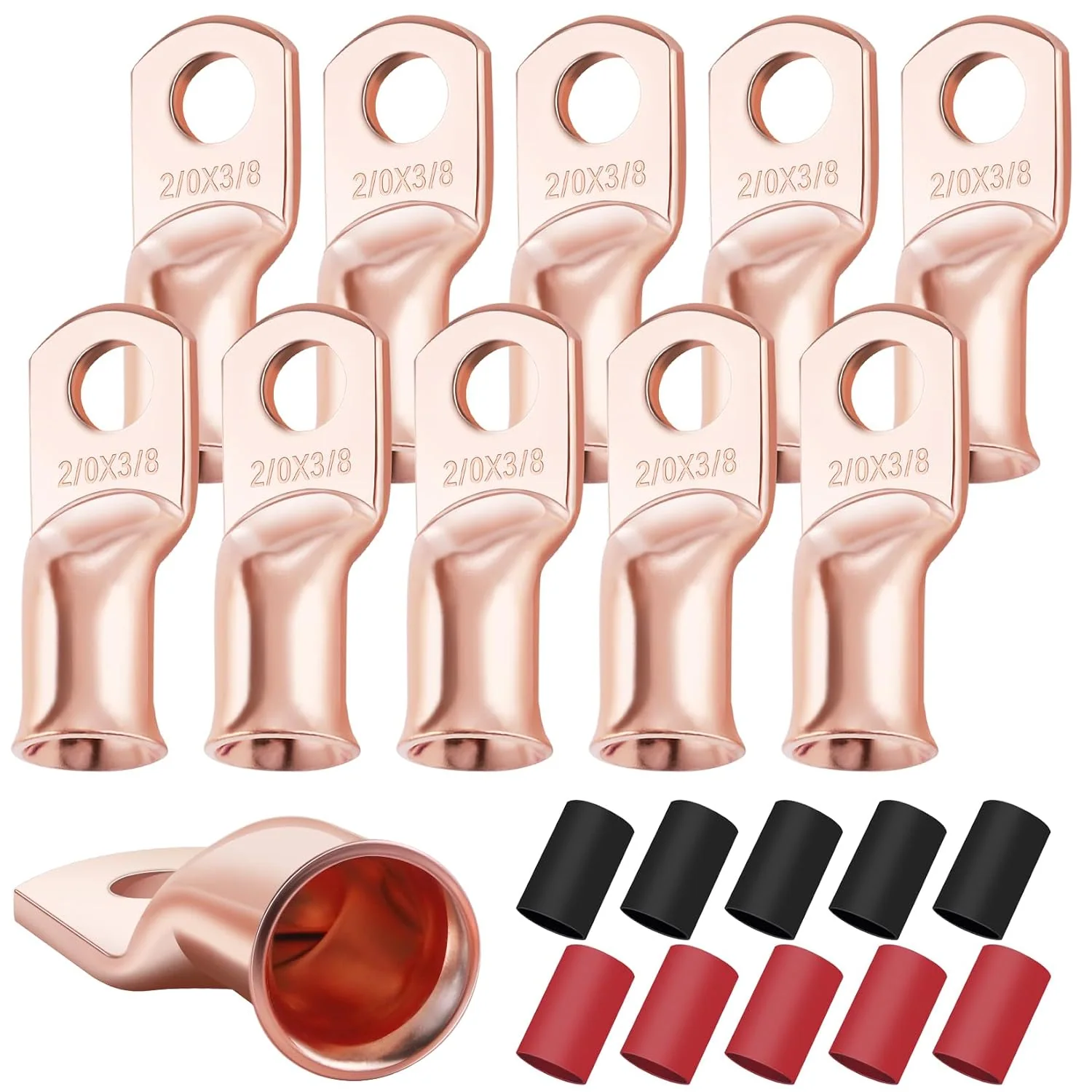

XHF 2/0 AWG Battery Cable Lugs with Heat Shrink

Copper ring lugs for 2/0 AWG battery cable, each pack with 3:1 heat shrink.

4.7 out of 5 (82 ratings)
  • Cable size2/0 AWG
  • MaterialAnnealed electrolytic copper
  • In each 10-piece pack10 lugs and 10 heat shrink sleeves, 5 red and 5 black
  • MountingRing, stud sizes in the table

1 / 4

XHF Battery Cable Lugs

Selected pack: 1/4 in stud, 10 pcs

$12.99 $1.30 per piece Order This Pack on Amazon See all 4 pack sizes

Prices from our last update. You see delivery dates and pay at checkout.

Pack sizes and prices

Tap a row to choose it. The price box and the button follow your choice.

Prices from our last update. Per unit is the pack price divided by the pieces or feet in it.
ChooseStudPiecesPack pricePer unit
1/4 in10 $12.99$1.30 / pc
5/16 in10 $12.99$1.30 / pc
3/8 in10 $12.99$1.30 / pc
1/2 in10 $12.99$1.30 / pc

A battery lug is a ring terminal with a heavy barrel. You crimp the barrel onto stripped cable and bolt the ring onto a battery post, a bus bar or a starter stud. These are for 2/0 AWG cable and come in several ring sizes, so pick the stud before the pack.

We make them from annealed electrolytic copper, which is soft enough to crimp tightly without cracking. Each 10-piece pack has ten 3:1 heat shrink sleeves, five red and five black, so the positive and negative ends are marked when the job is done.

Crimp with a lug crimper or a hammer crimper made for the cable size. Slide the heat shrink onto the cable before you crimp, because it will not go over the ring afterwards.

What it will not do

  • A lug does not fit a cable of another gauge. Too small and it will not close, too big and the crimp is loose.
  • The pack has no crimping tool.
  • The ring size is fixed. Measure the stud before you choose.
