XHF 90-Degree Flag Spade Connectors
90-degree flag disconnects for tight spaces, nylon insulated.
4.5 out of 5 (322 ratings)- Ranges22-18, 16-14, 12-10 AWG
- Angle90 degrees
- InsulationNylon, fully insulated
XHF Wire Connectors & Terminals
Selected pack: 22-18 AWG
$8.49 $0.085 per piece Order This Pack on Amazon See all 3 pack sizesPrices from our last update. You see delivery dates and pay at checkout.
Pack sizes and prices
Tap a row to choose it. The price box and the button follow your choice.
| Choose | Wire range | Pack price | Per unit |
|---|---|---|---|
| 22-18 AWG | $8.49 | $0.085 / pc | |
| 16-14 AWG | $8.99 | $0.090 / pc | |
| 12-10 AWG | $8.99 | $0.18 / pc |

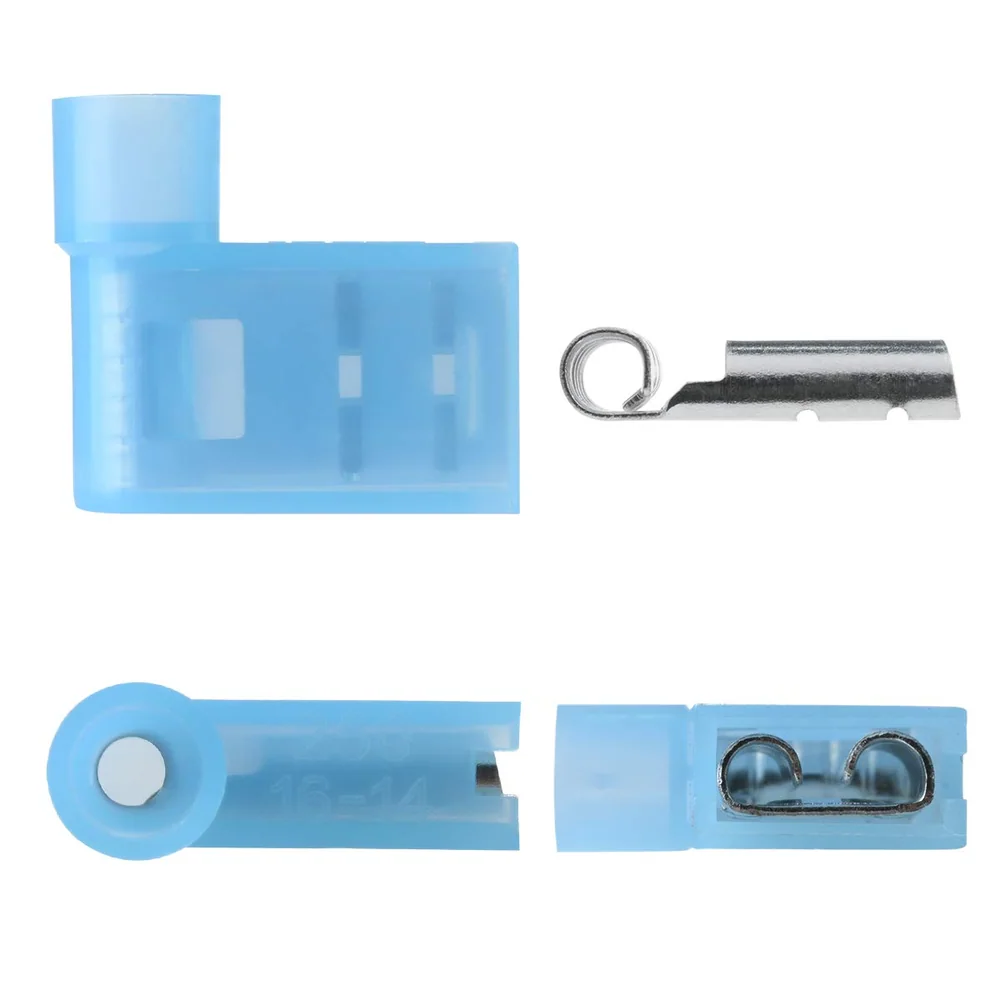

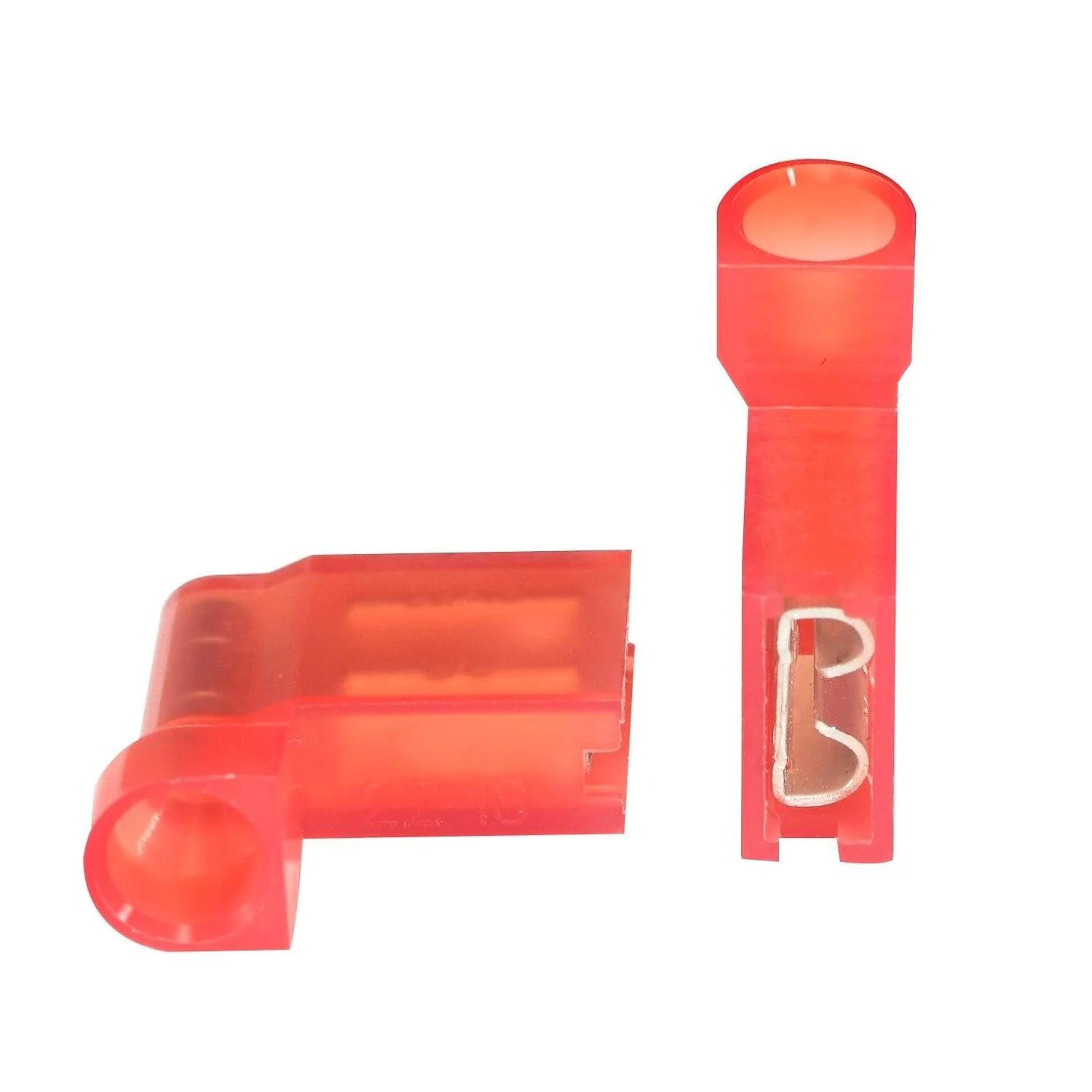

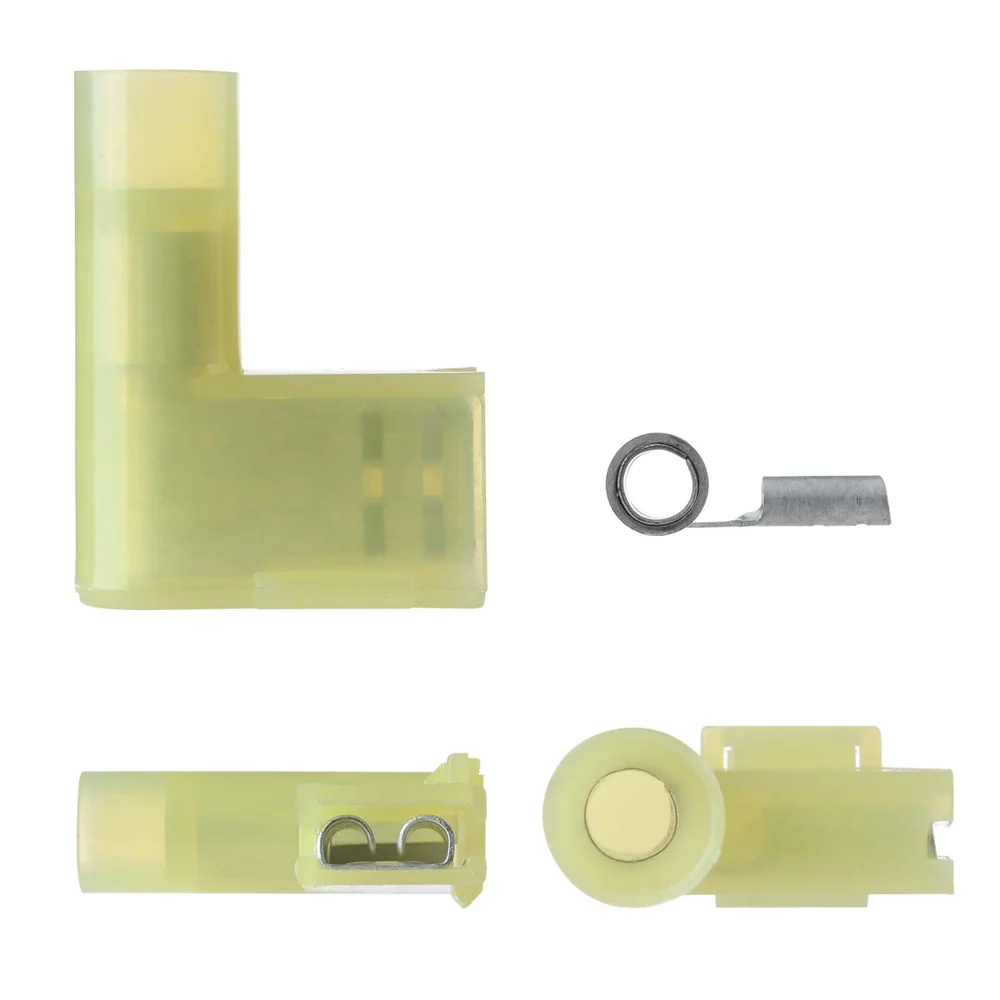

A flag connector leaves the tab at a right angle, so the wire runs flat along the part instead of sticking straight out. It fits where a straight female spade would hit a cover or a wall.

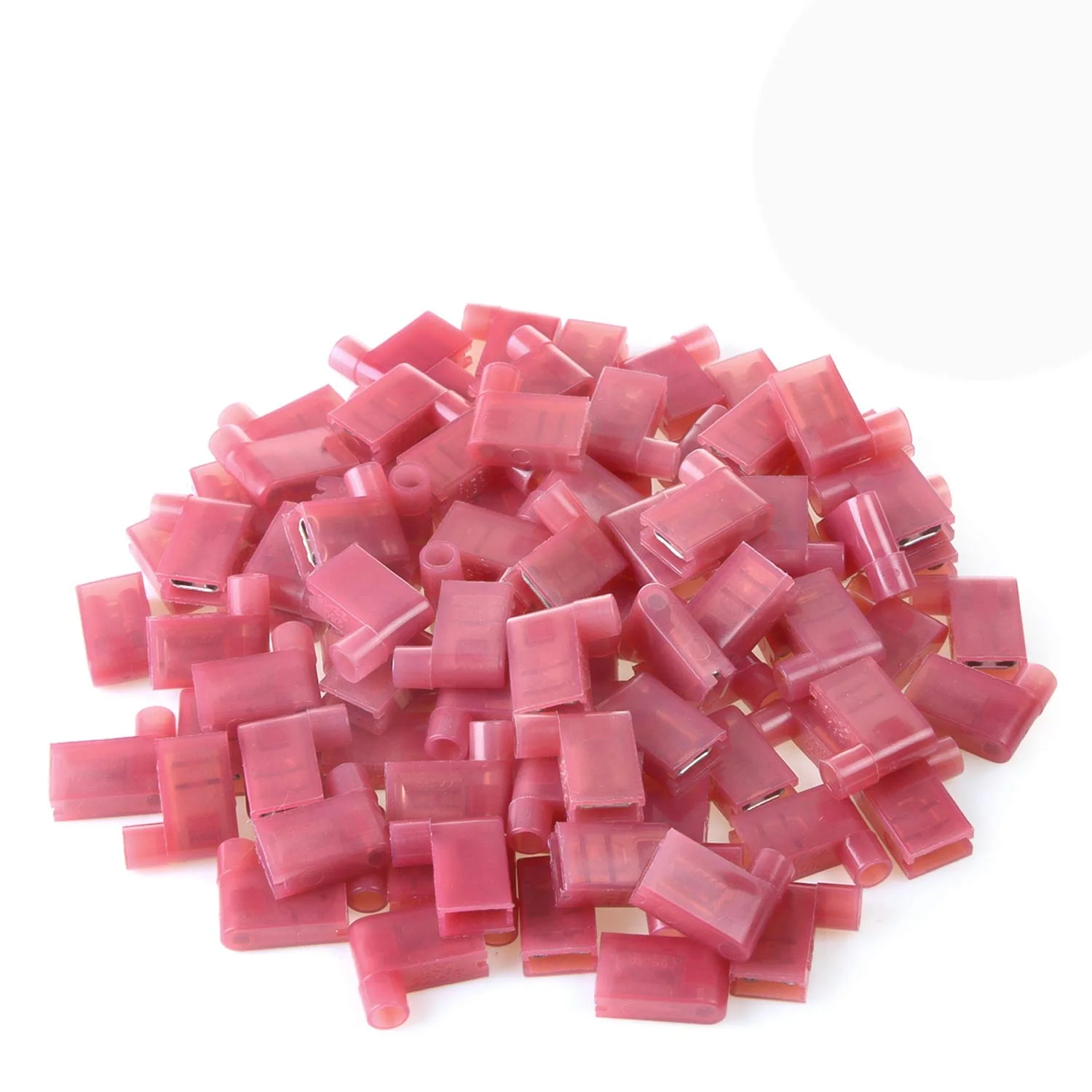

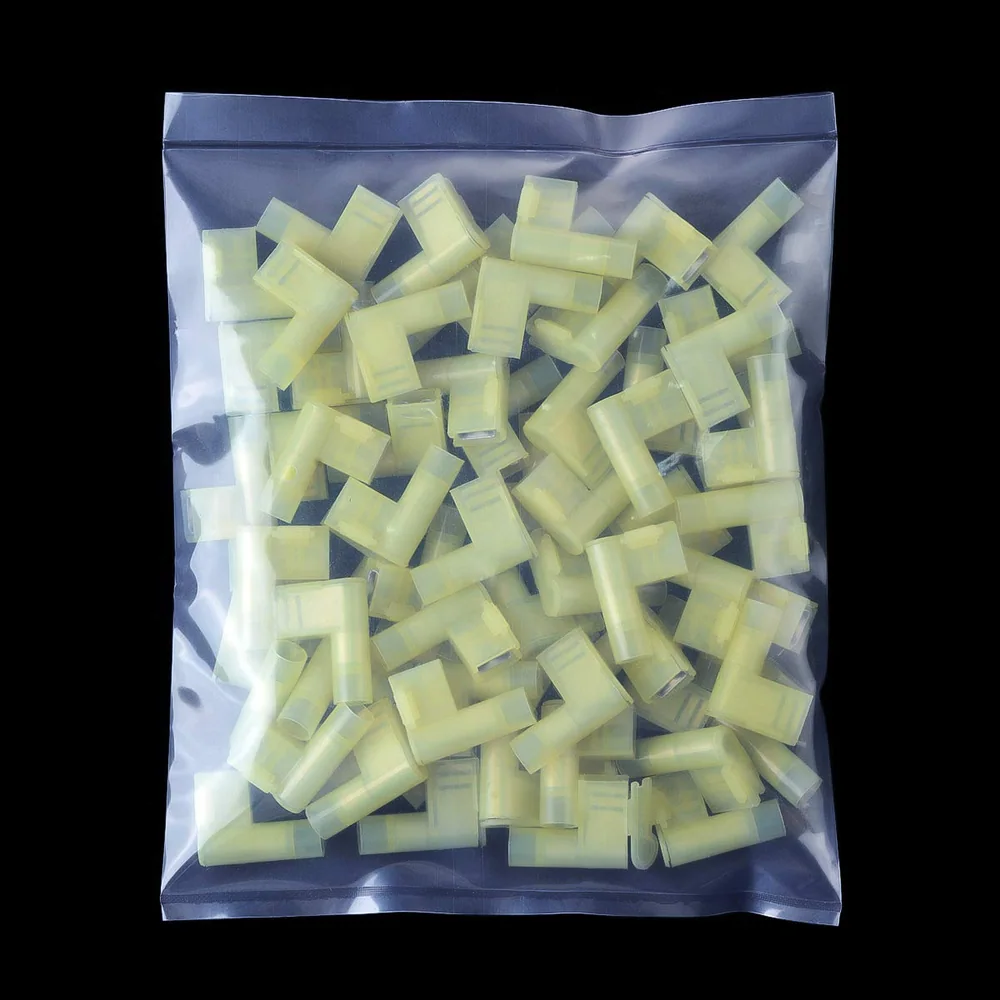

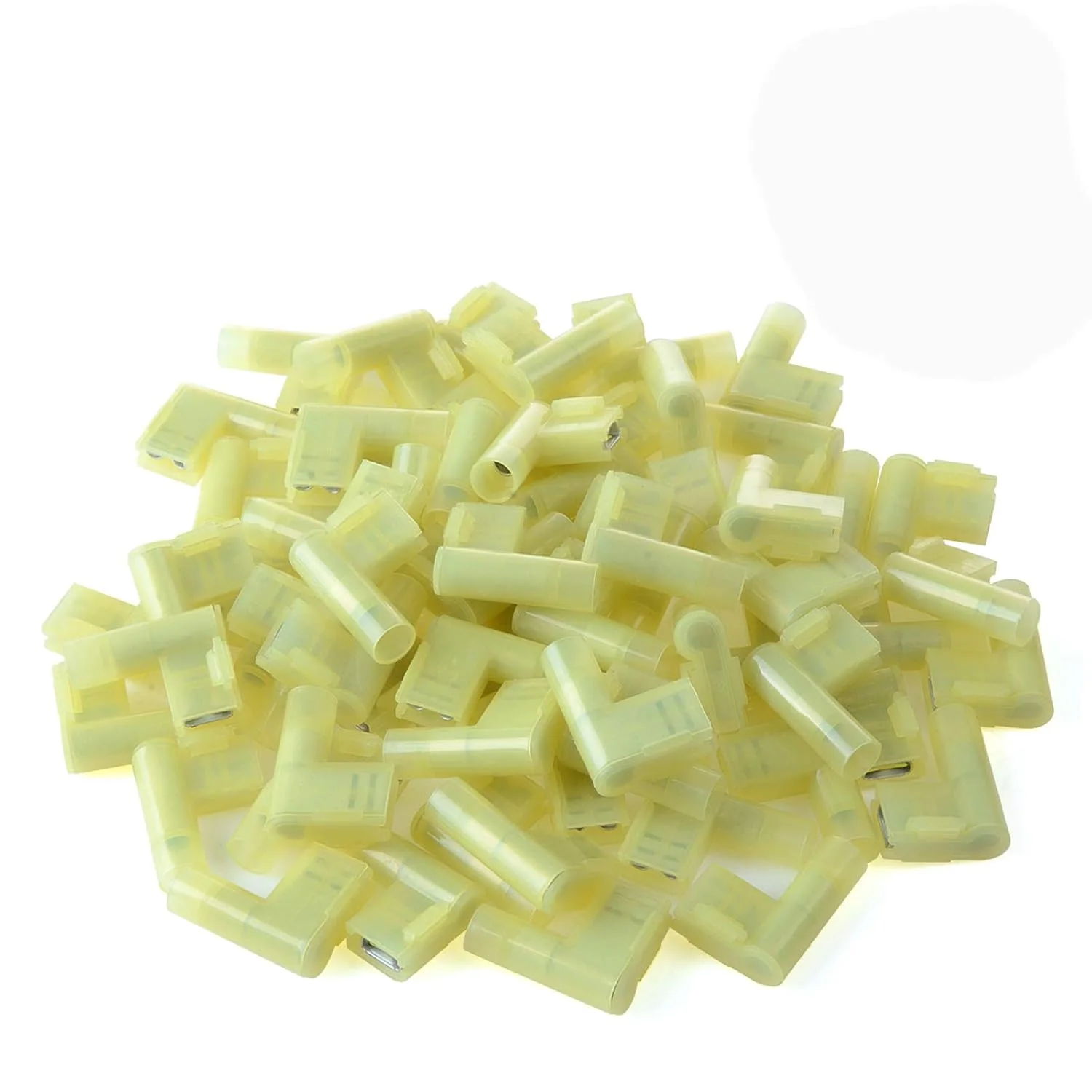

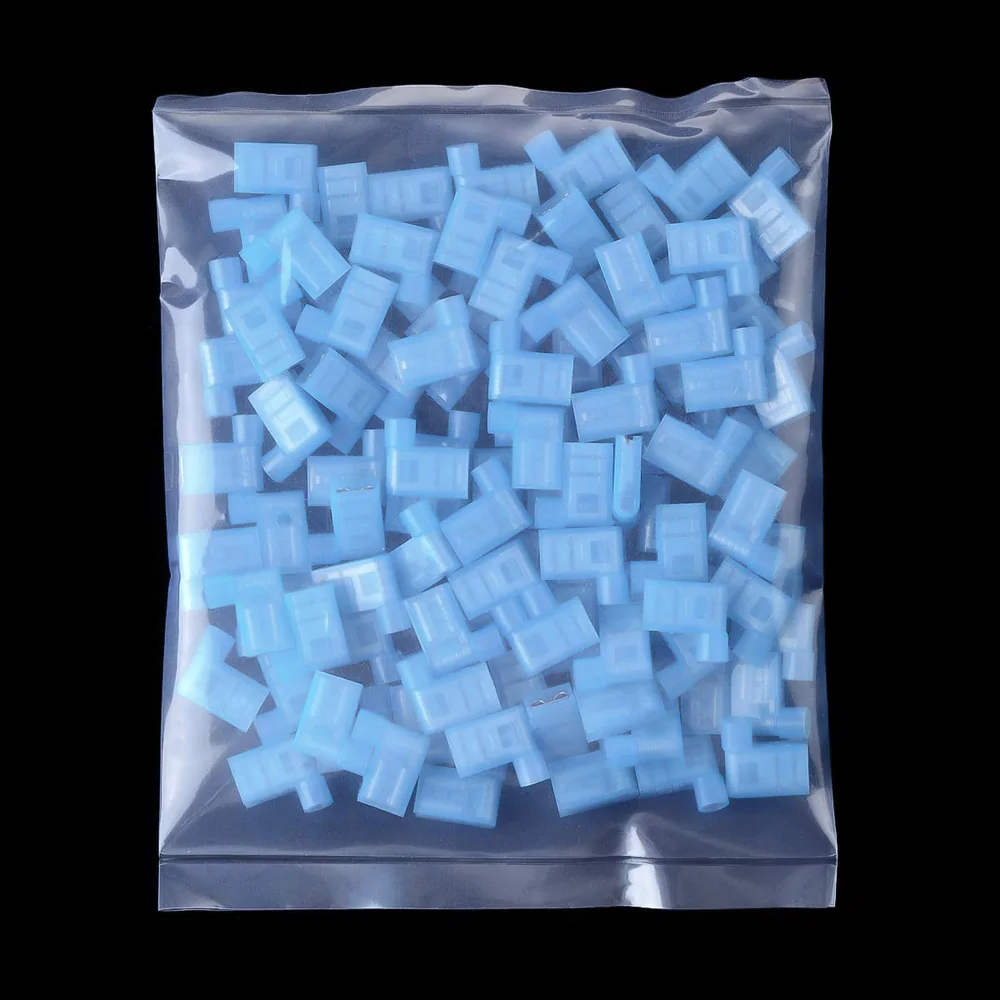

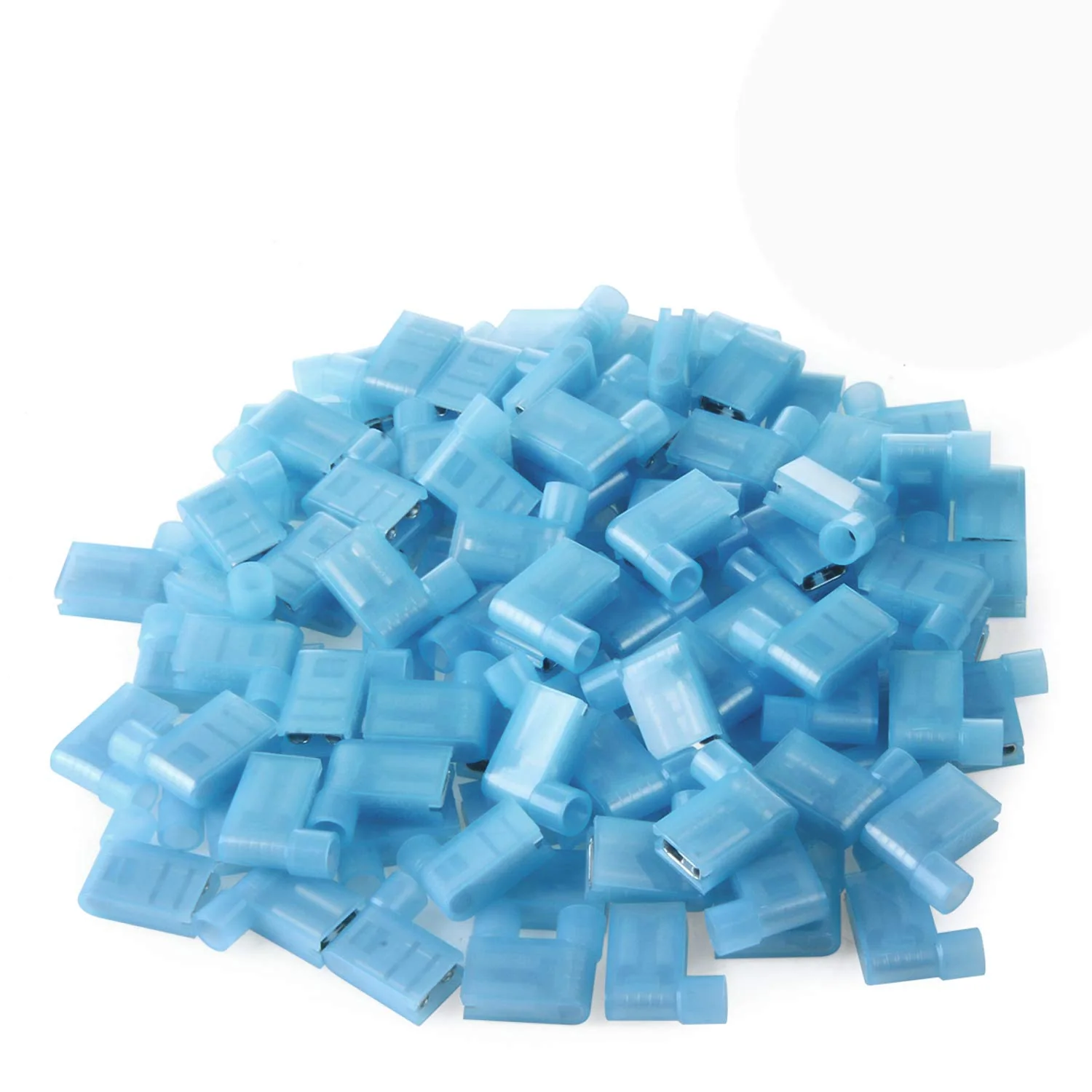

Three wire ranges, each in its usual color. The 22 to 18 AWG version is for a 0.25 in tab.
What it will not do
- Female only, so it needs a male tab on the part.
- Not sealed against water.
| Detail | Value |
|---|---|
| Ranges | 22-18, 16-14, 12-10 AWG |
| Angle | 90 degrees |
| Insulation | Nylon, fully insulated |
| Pack sizes | 3 |
| Price range | $8.49 to $8.99 |
